EYH series two-dimensional motion mixer

Description

Working principle
　　The two-dimensional mixing machine is mainly composed of three parts: rotary drum, swing frame and frame. The rotary drum is installed on the swing frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two of the driving wheels are driven by the rotating power system to rotate the rotary drum. The swing frame is driven by a group of crank and swing mechanism. The crank and swing mechanism is constructed on the frame, and the swing frame is supported on the frame by bearing components.

Performance characteristics
　　The rotary drum of EYH two-dimensional mixer can carry out two motions at the same time, one is the rotation of the rotary drum, and the other is the swing of the rotary drum with the swing frame. The mixed materials rotate, turn over and mix with the rotary drum in the rotary drum, and at the same time, the mixed materials move back and forth with the swing of the rotary drum. Under the joint action of these two movements, the materials are fully mixed in a short time. EYH two-dimensional mixer is suitable for mixing all powder and granular materials.

Parameter

Specification and model	Volume（L）	Loading factor	Loading weight （kg）	Overall dimension（mm）						Power（kw)
Specification and model	Volume（L）	Loading factor	Loading weight （kg）	A	B	C	D	M	H	Turn	Swing
EYH100	100	0.5	40	860	900	200	400	1000	1500	1.1	0.75
EYH300	300	0.5	75	1000	1100	200	580	1400	1650	1.1	0.75
EYH600	600	0.5	150	1300	1250	240	720	1800	1850	1.5	1.1
EYH800	800	0.5	200	1400	1350	240	810	1970	2100	1.5	1.1
EYH1000	1000	0.5	350	1500	1390	240	850	2040	2180	2.2	1.5
EYH1500	1500	0.5	550	1800	1550	240	980	2340	2280	3	1.5
EYH2000	2000	0.5	750	2000	1670	240	1100	2540	2440	3	2.2
EYH2500	2500	0.5	950	2200	1850	240	1160	2760	2600	4	2.2
EYH3000	3000	0.5	1100	2400	1910	280	1220	2960	2640	5	4
EYH5000	5000	0.5	1800	2700	2290	300	1440	3530	3000	7.5	5.5
EYH10000	10000	0.5	3000	3200	2700	360	1800	4240	4000	15	11
EYH12000	12000	0.5	4000	3400	2800	360	1910	4860	4200	15	11
EYH15000	15000	0.5	5000	3500	3000	360	2100	5000	4400	18.5	15

The bulk specific gravity of materials is 0.6g/cm ³ Please indicate when ordering.

VR

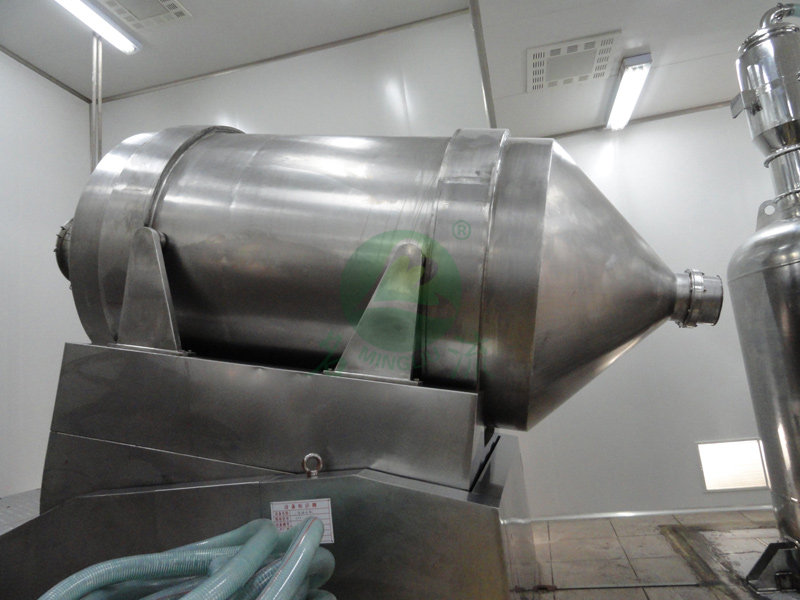

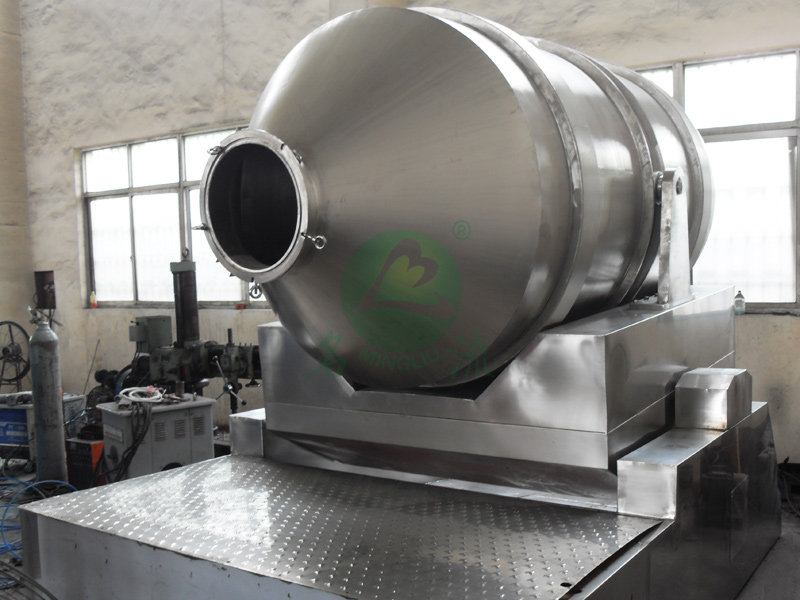

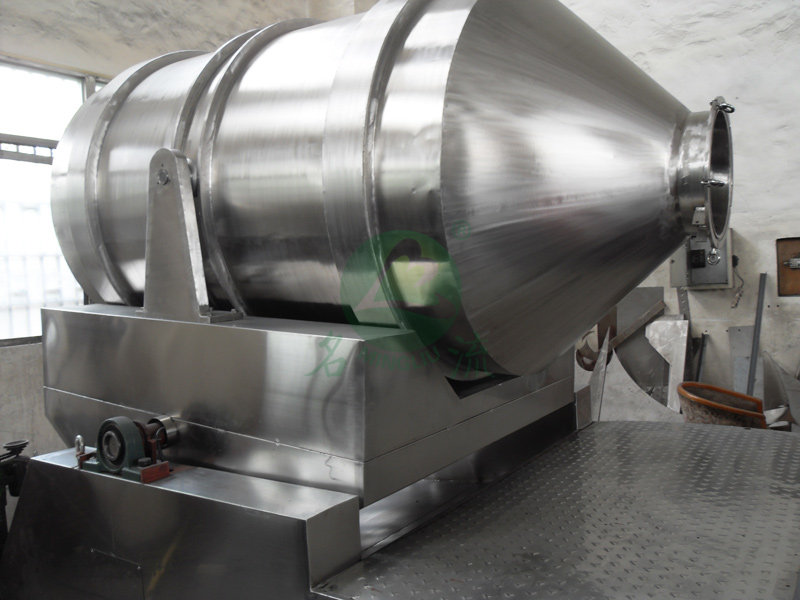

Photos
