FS series square oscillating screen
FS series square oscillating screen is composed of three parts: screen box at inlet and outlet, vibration source and shock absorber. It is widely used for screening in pharmaceutical, food, chemical, metallurgical, electronic and other industries.
24-hour hotline service
+8613626243889
Description




Summary
  The machine is composed of three parts: the screen box at the inlet and outlet, the vibration source and the shock absorber. The machine base and screen box are connected with 4-6 sets of soft rubber shock absorbers which are fixed up and down. Centrifugal force is generated when the machine is started. The amplitude is controlled by eccentric blocks and shock absorbers, so as to achieve the required working performance and make the material have a shock-proof and loose screening process. Ideal equipment for screening in pharmaceutical, food, chemical, metallurgical, electronic and other industries.

Parameter



Model
Productive power
(kg/h)
Number of sieves
(mesh)
Motor power
 (kw/h)
Vibration frequency
(r/min)
Exciting force
(kN)
Height of upper outlet
Middle outlet height
Lower outlet height
Overall dimension
(L×W×H)
Net weight
(kg)
FS-0.5M2-X
450
2-150
0.2×2
1400
0-2.5×2
800
680
500
1300×770
             ×1060
220
FS-0.7M2-X
650
2-150
0.2×2
1400
0-2.5×2
850
750
530
1700×680
             ×1100
280
FS-0.8M2-X
750
2-150
0.2×2
1400
0-2.5×2
850
750
530
1600×830
             ×1150
320
FS-1.2M2-X
1100
2-150
0.2×2
960
0-5×2
880
760
520
1900×980
             ×1220
450
VR

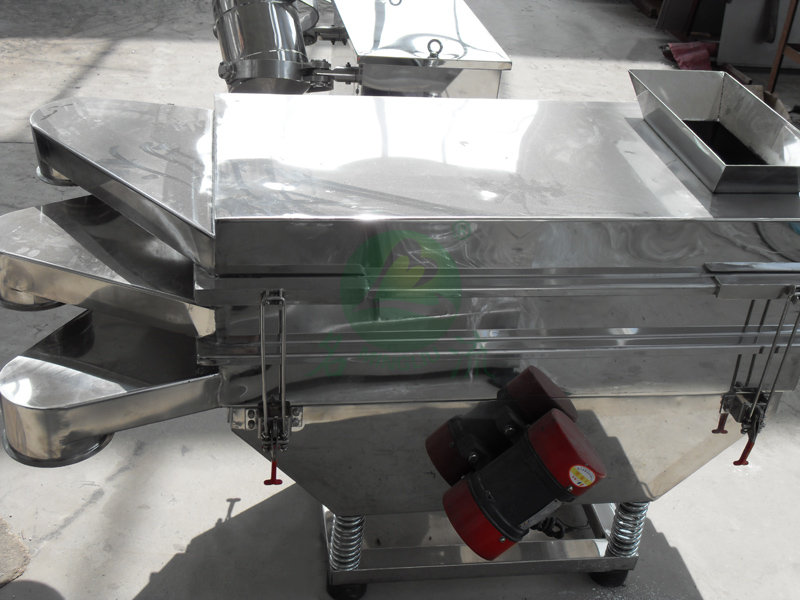

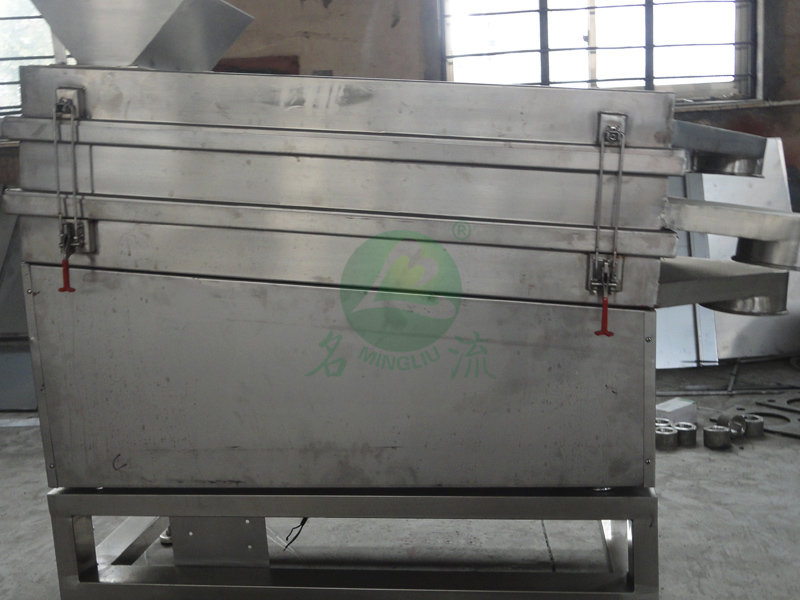

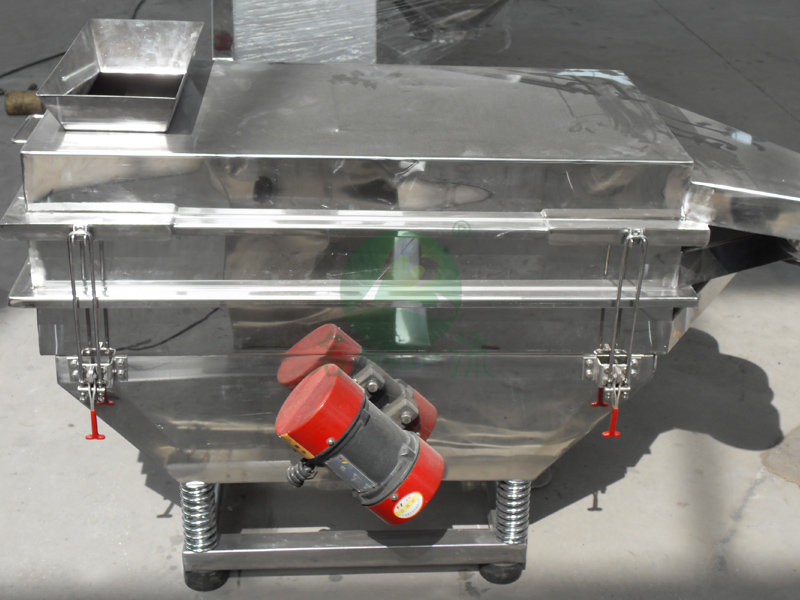

Photos
