SZG double-cone rotary vacuum dryer
Double-cone rotary vacuum dryer is used to inject thermal energy (such as hot water, low pressure steam or heat transfer oil) into the closed interlayer, and the heat is transferred to the dried material through the inner shell. The material is in a vacuum state, and the vapor pressure drops so that the water (solvent) on the surface of the material reaches the saturation state and evaporates, and is discharged and recycled by the vacuum pump in time.
24-hour hotline service
+8613626243889
Description

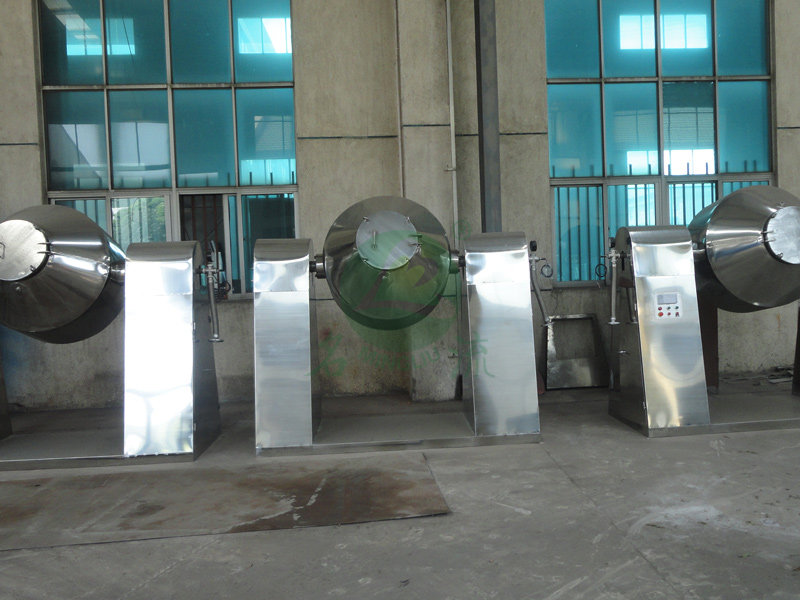

Product Overview1.jpg

  SZG double-cone vacuum dryer is a new generation drying device developed by our factory in combination with the technology of similar products in China. The double-cone vacuum adopts the elastic connection mode of belt and chain, so the equipment runs smoothly. The specially designed process fully reflects the good concentricity of the two shafts, and the heat medium and vacuum system adopt reliable mechanical seals or American technology rotary joints. On this basis, we developed SZG-A, which can be used for stepless speed regulation and constant temperature control.

  As a professional drying equipment manufacturer, our products range from high-temperature heat transfer oil as the heat medium, medium-temperature steam and low-temperature hot water. When drying sticky materials, our factory will specially design a "board copying" mechanism or set up a ball in the tank for you.

Working principle

◎ Heat energy (such as hot water, low pressure steam or heat transfer oil) is introduced into the closed interlayer, and the heat is transferred to the dried material through the inner shell.

◎ Under the power drive, the tank body rotates slowly, and the materials in the tank are continuously mixed, so as to strengthen the drying.

◎ The material is in a vacuum state, and the vapor pressure drops so that the water (solvent) on the surface of the material reaches the saturation state and evaporates, and is discharged and recycled by the vacuum pump in time. The water (solvent) inside the material continuously permeates, evaporates and discharges to the surface. The material can be dried in a short time.

Performance characteristics

◎ When the oil is heated, automatic constant temperature control is used to dry the biochemical products.

◎ With mineral raw materials, the temperature can be between 20 and 160oC.

◎ High thermal efficiency, more than 2 times higher than ordinary ovens.

◎ Indirect heating. The material will not be polluted and meets the requirements of "GMP". The equipment is easy to maintain and clean.

◎ Recommended process placement demonstration solvent recovery process placement.

Applicable materials

  It is applicable to the concentration, mixing and drying of powder, granular and fiber in chemical, pharmaceutical, food and other industries, as well as materials that need to be dried at low temperature (such as biochemical products, etc.). It is also applicable to the drying of materials that are easy to oxidize, volatilize, heat sensitive, strongly irritating, toxic, and materials that are not allowed to destroy crystals.


Parameter



Specifications
Name

SZG-100

SZG-350

SZG-500

SZG-750

SZG-1000

SZG-1500

SZG-2000

SZG-3500

SZG-4500

SZG-5000

Tank volume100350500750100015002000350045005000
Loading volume (L)≤50≤175≤250≤375≤500≤750≤1000≤1750≤2250≤2500
Heating area (m²)1.1622.633.54.615.587.511.213.114.1
Speed (rpm)4 - 6
Motor power (kw)0.751.11.523345.57.511
Area covered Long×Wide(mm)2160×8002260×8002350×8002560×10002860×13003060×13003260×14003760×18003960×20004400×2500
Swing height(mm)1750210022502490280029402990349041004200

Design pressure in tank(MPa)

-0.1-0.15
Jacket design pressure (MPa)≤0.3
Working temperature (oC)In tank≤85 Jacket≤140
When using condenser, vacuum pump,2X-15A2X-15A2X-30A2X-30A2X-70AJZJX300-8JZJX300-4JZJX600-8JZJX600-4JZJX300-4
Model, Power2KW2KW3KW3KW5.5KW7KW9.5KW11KW20.5KW22KW
When the condenser is not used, the vacuum pump,SK-0.4SK-0.8SK-0.8SK-2.7BSK-2.7BSK-3SK-6SK-6SK-9SK-10
Model, Power1.5KW2.2KW2.2KW4KW4KW5.5KW11KW11KW15KW18.5KW
Weight(kg)800110012001500280033003600640075008600

Note: For materials with large volume changes before and after drying, the loading coefficient can be appropriately increased or decreased.
